Choosing among the Top 10 welding positioners takes more than comparing load ratings. Buyers must consider the workpiece’s weight, center of gravity, rotation speed, and required tilt. A compact tabletop unit may suit small assemblies, while a heavy-duty positioner needs a stable base and sufficient torque for bulky fabrications. Check the rated capacity carefully. It is not the only number that matters.
“Choose for repeatable weld access, not rotation alone.” This is a practical buying principle, not a verified quotation from a named industry expert. A source-backed expert quotation should be added before publication rather than attributed without evidence. In real workshops, the right unit can bring a seam into a comfortable working position, reduce awkward torch angles, and help operators maintain consistent travel. It cannot replace sound setup or skilled judgment.
This guide compares welding positioners for global buyers across capacity, adjustment range, control options, build quality, and service considerations. It also highlights details that product listings may gloss over, such as footprint, clamping method, and compatibility with fixtures. Needs vary by shop. A machine suited to repetitive production may be excessive for occasional repair work, while a low-cost model may fall short under daily use. Treat each specification as a starting point, then verify it against the actual parts and workflow.

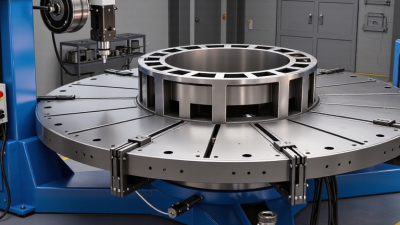

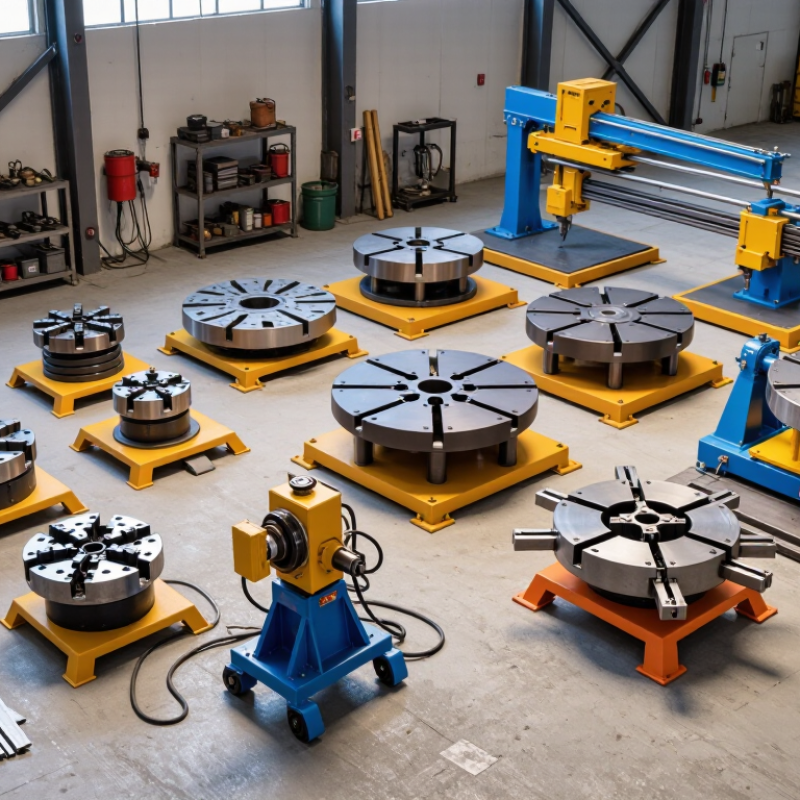

Top 10 Welding Positioners for Global Buyers
Welding Positioners: Purpose, Components, and Operating Principles
A welding positioner rotates or tilts a workpiece, keeping the joint near the operator’s preferred welding angle. This reduces awkward posture, uneven bead placement, and repeated repositioning. Its main components include a geared turntable, drive motor, frame, chuck or fixture, control panel, and safety interlock. Some models add a tilting gearbox, foot pedal, or programmable controller.
The operating principle is straightforward. The motor transfers torque through a gearbox to the table. The controller sets rotation speed, direction, and stopping points. A stable fixture holds the workpiece while the table moves it through the welding path. The American Welding Society highlights position control as a key factor in consistent weld quality. A 2024 Fortune Business Insights report estimated the global welding equipment market at about USD 16 billion in 2023. Another market analysis projects continued growth as manufacturers seek higher automation and productivity.
Selection still requires caution. Rated load is not the only concern. Buyers should check eccentric load capacity, table runout, minimum speed, duty cycle, and fixture compatibility. A heavy vessel can overload a positioner even when its static weight appears acceptable. That mistake is common. Operators also need clear access to controls and emergency stopping functions. Market forecasts are useful, but they cannot replace a real trial with the intended workpiece, fixture, and welding procedure.
Welding positioners hold and rotate or tilt a workpiece so welders can reach more joints in a comfortable, repeatable position. Typical systems combine a base or frame, worktable or fixture, drive motor and gearbox, bearings, tilt mechanism, controls, and safety devices. Rotation and tilting place the weld in a more accessible position; they do not replace correct fixturing, welding procedures, or operator safeguards.
| No. | Positioner Type | Typical Rated Load | Axes and Typical Motion | Main Components | Operating Principle | Suitable Applications | Buyer Considerations |
|---|---|---|---|---|---|---|---|
| 1 | Compact manual tilt-and-rotate table | Approximately 50–300 kg | Manual tilt, commonly up to about 90°; manual or powered table rotation, depending on configuration | Base, tilting table, pivot and locking mechanism, rotary bearing, clamps | The operator sets and locks the table angle, then turns the workpiece by hand or with a low-speed drive. | Small brackets, repair work, training, and light fabrication | Check load capacity at the intended table angle, clamping options, and whether rotation is powered. |
| 2 | Bench-top powered rotary positioner | Approximately 50–500 kg | One powered rotary axis; speed is usually adjustable over a low-RPM range | Worktable, electric motor, gearbox, rotary bearing, speed control, foot switch or hand control | A motor and gearbox turn the mounted workpiece at a controlled speed to maintain a steady welding orientation. | Small circular parts, flanges, rings, and repetitive circumferential welds | Verify minimum rotation speed, runout, table diameter, and whether the welding current path is suitable for the process. |
| 3 | Single-axis floor-mounted rotary positioner | Approximately 500 kg–5 tonnes | One powered rotary axis; tilt is fixed or adjusted manually, depending on design | Floor base, rotary table, geared drive, motor, controller, workholding fixtures | The powered table rotates a secured workpiece; the operator or fixture establishes the required work angle. | Production welding of medium-size circular or balanced components | Assess floor anchoring, table height, workpiece overhang, load balance, and the rated load at the required center of gravity. |
| 4 | Two-axis tilt-and-rotate positioner | Approximately 100 kg–5 tonnes | Powered rotation plus powered or manual tilt; tilt commonly covers a working range up to about 135° | Tilting frame, rotary table, drive motors, gearboxes, bearings, limit switches, controls | Independent axes rotate and incline the workpiece, allowing the operator to bring joints into accessible welding positions. | General fabrication, frames, housings, and multi-sided assemblies | Confirm axis travel, speed control, interference clearance, and permitted load at different tilt angles. |
| 5 | Headstock-and-tailstock positioner | Approximately 500 kg–20 tonnes, depending on span and configuration | Powered rotation between two supports; some systems add powered headstock tilt | Drive headstock, tailstock or support stand, connecting fixture, bearings, drive and controls | The workpiece is supported at both ends and rotated about its axis, reducing unsupported span for long parts. | Long shafts, beams, pipe spools, and elongated fabricated assemblies | Check center-to-center distance, tailstock adjustment, allowable torque, and load distribution between supports. |
| 6 | Low-profile horizontal rotary positioner | Approximately 500 kg–10 tonnes | One powered horizontal rotary axis; optional tilt on selected configurations | Low-profile base, horizontal table, geared drive, motor, controls, fixture plate | The low-height table rotates the workpiece around a vertical axis, helping operators load and access large, wide parts. | Large plates, tanks, frames, and assemblies with a low center of gravity | Compare table diameter, loading method, floor space, and access for clamps and welding equipment. |
| 7 | High-capacity tilting positioner | Approximately 5–30 tonnes or more for engineered systems | Powered rotation and powered tilt; the working envelope depends on the specific design | Heavy-duty frame, trunnions, large bearings, geared drives, brakes or holding devices, safety controls | Mechanically driven axes reposition a heavy, fixtured workpiece while structural supports carry the rated load. | Heavy equipment, large welded structures, and substantial fabricated components | Require a documented load chart, foundation requirements, tilt limits, braking provisions, and a site-specific risk assessment. |
| 8 | Portable or mobile welding positioner | Approximately 50–1,000 kg | Usually one powered rotary axis; mobility may be provided by wheels or a movable base | Compact base, table, drive, controller, wheels or handling points, locking devices | The unit is moved to the work area, secured against movement, and used to rotate a suitably balanced workpiece. | Maintenance shops, job shops, and work cells with changing layouts | Check mobility under load, wheel locks or anchoring, cable routing, and stability during rotation. |
| 9 | Programmable servo-controlled positioner | Approximately 100 kg–10 tonnes, depending on system design | One or more powered axes with programmable speed and position control | Servo motors, drives, encoders, controller, fixture interface, guarding and interlocks as specified | Feedback from encoders allows the controller to command and monitor axis motion for repeatable positioning or coordinated operation. | High-repeatability production cells and integration with mechanized welding equipment | Confirm control-system compatibility, programming requirements, guarding, teach modes, and service support. |
| 10 | Welding-robot-integrated positioner | Approximately 100 kg–10 tonnes per station, subject to configuration | One or more robot-coordinated axes; motion range and speed are system-specific | Positioner axes, robot controller interface, fixtures, safety fencing or scanners, interlocks | The positioner changes the workpiece orientation in coordination with the robot program to improve torch access and weld-path coverage. | Repeatable production of complex parts and multi-sided weldments | Evaluate robot-positioner coordination, cell layout, cycle time, fixture repeatability, and integrated safety design. |
The configurations above are common equipment categories, not a manufacturer ranking or a specification for a particular product. Capacity, speed, tilt range, and duty cycle vary by design. Before selection, check the manufacturer’s load chart—including center-of-gravity and off-center loading limits—and confirm workholding, electrical compatibility, guarding, emergency-stop provisions, and applicable workplace safety requirements.
